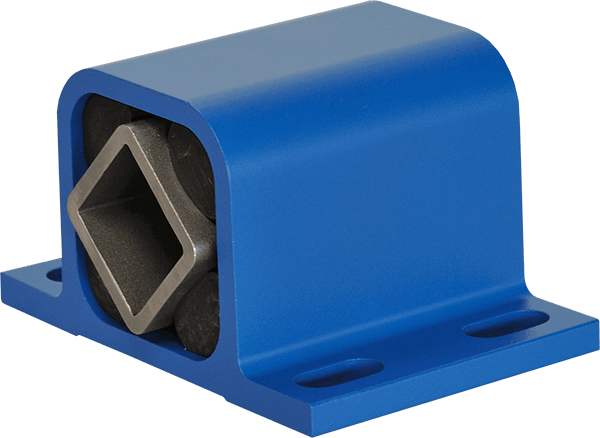

Type DW-S 45-50

The housings of the element sizes DW-S 45 and 50 are made out of spheroidal cast iron.

Order drawing datas 2D + 3D

Please enter your address datas. The drawing datas will be sent to the specified E-Mail address.

Description	Art. No.	Type	C	E	G	H	O	Q	S	I	L	L1	M	Weight [kg]	Nm ±5°	Nm ±10°	Nm ±15°	Nm ±20°	Nm ±25°	Nm ±30°
Rubber suspension unit Type DW-S 45x80	01 111 213	DW-S 45x80	35	81	115	145	9	41	45	13x27	80	90	-	1.26	27.6	62.4	104.0	160.0	222.0	320.0
Rubber suspension unit Type DW-S 45x100	01 111 214	DW-S 45x100	35	81	115	145	9	41	45	13x27	100	110	58	1.60	34.5	78.0	130.0	200.0	278.0	400.0
Rubber suspension unit Type DW-S 45x150	01 111 215	DW-S 45x150	35	81	115	145	9	41	45	13x27	150	160	90	2.30	51.8	117.0	195.0	300.0	420.0	600.0
Rubber suspension unit Type DW-S 50x120	01 111 216	DW-S 50x120	40	88	130	170	12	45	50	17x27	120	130	60	2.20	51	133	250	395	570	780
Rubber suspension unit Type DW-S 50x160	01 111 217	DW-S 50x160	40	88	130	170	12	45	50	17x27	160	170	70	2.90	77	197	363	570	820	1115
Rubber suspension unit Type DW-S 50x200	01 111 218	DW-S 50x200	40	88	130	170	12	45	50	17x27	200	210	70	3.60	102	260	475	745	1070	1450
